Dear Readers,

Meat grinder TLF

In the past few weeks I’ve been working on rendering a meat grinder made in the USSR. It is apparently a type EMS-30\100-2 from 1984, and believe it or not, it still functions to this day. Moreover, it does not only function, but never ever had to be repaired either. Wow! 32 years of continuous service with no downtime. No wonder Russians had this saying: “Советское – значит отличное!”, which translates to: “Soviet – (it) means excellent!”.

It is nice and all, but this is not the reason I chose to render this particular household appliance, although it does have a certain cool factor. The real reason is that is has many interesting (hard to sketch) features, which if properly done, will teach a lot about using CAD software. It really forces the user to stretch the limits of his/her current knowledge, mostly because of the very small amount of parallels, lots of bent surfaces, a lot of awkward shapes. These do not only test the user, but as it turned out, the software too. I had literally dozens of occurrences when the software could not render sketches because of its limitations, and thus quite a few times I was forced to figure out different approaches to render a problematic feature. Furthermore, this meat grinder can only be drawn as a multi-part rendition, which also allowed me to be able to experiment with the assembly section of the software. Overall, this was a very educating project, so I’m really glad I was able to render every important part of it. But enough of talking, let’s see the result of my work. Enjoy.

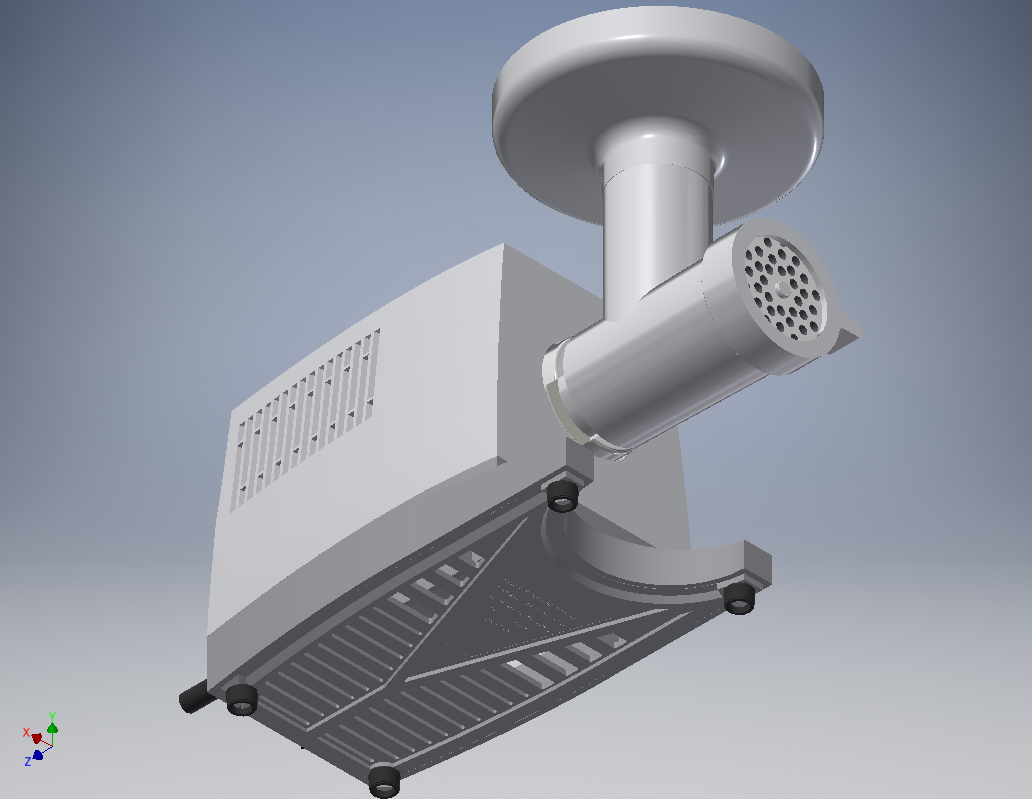

Meat grinder LFB

Meat grinder TBL

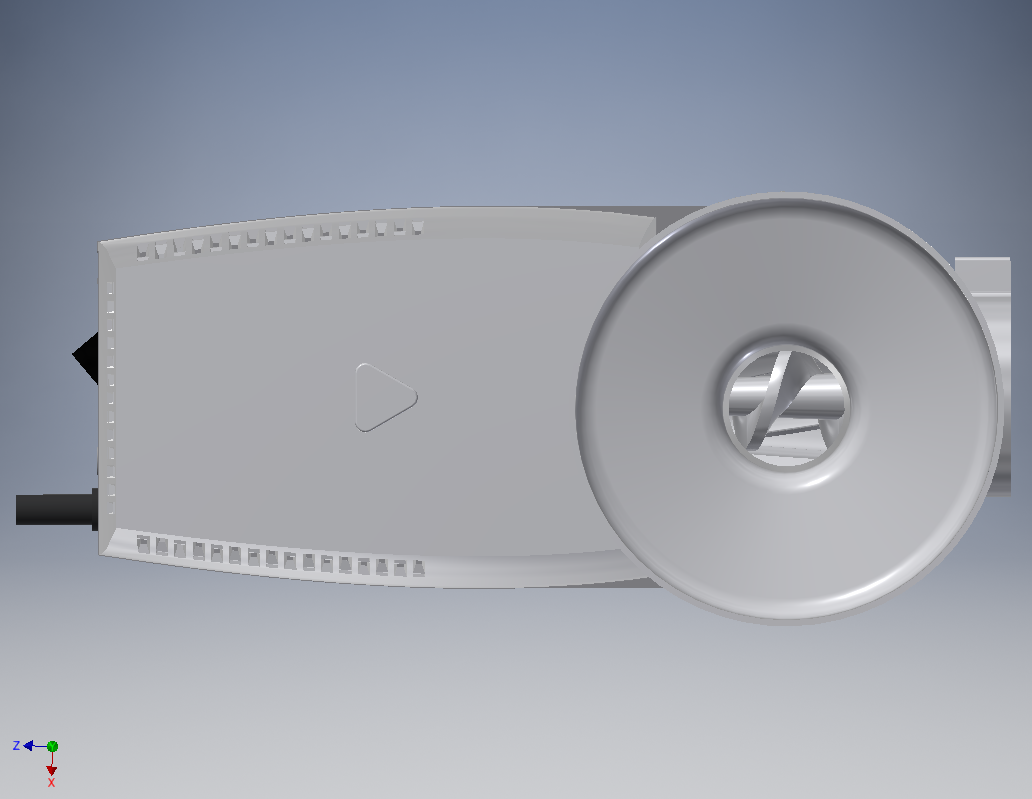

Meat grinder T

Meat grinder L

Meat grinder F

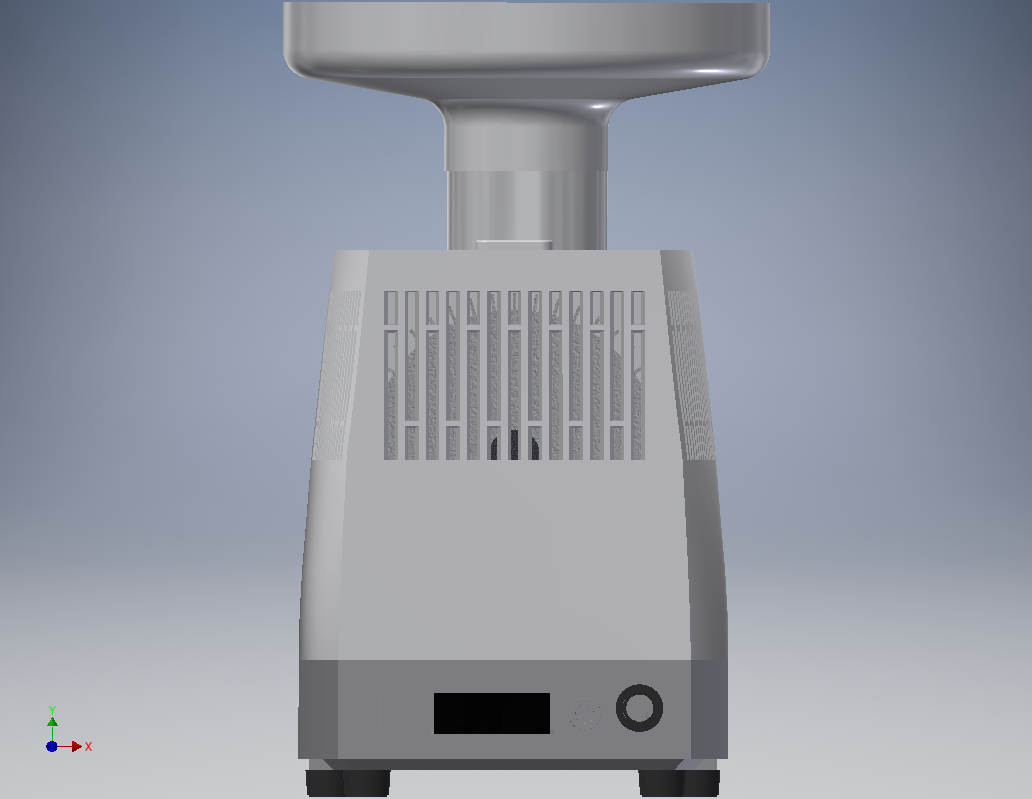

Meat grinder B

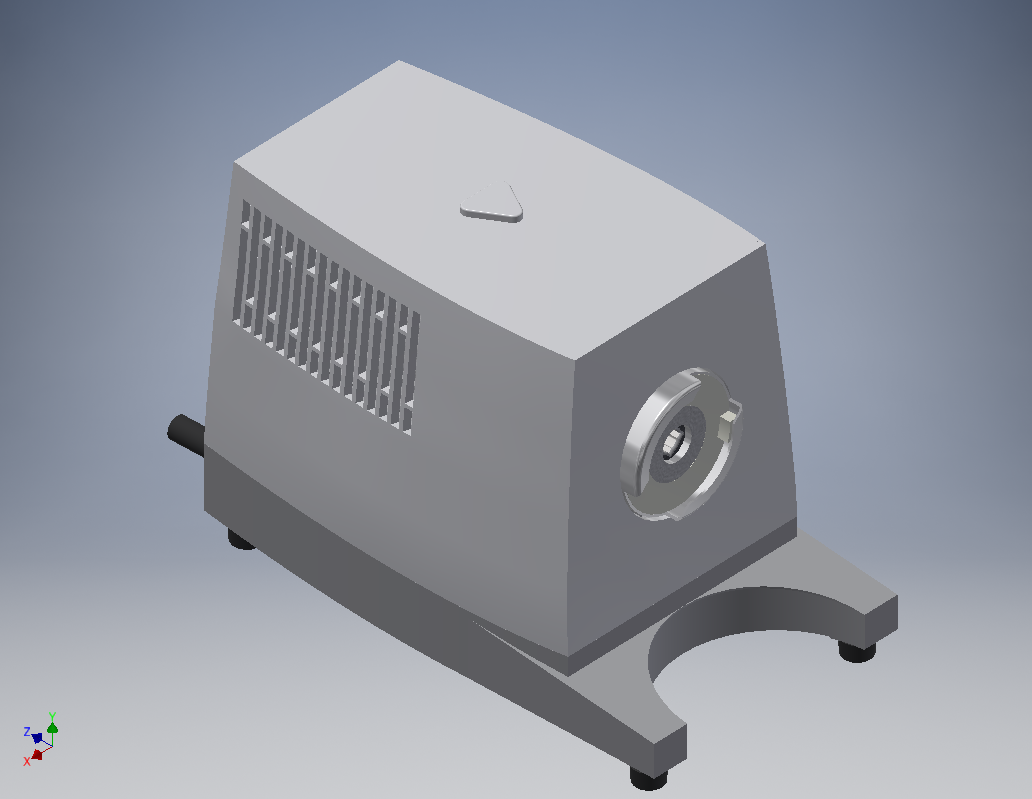

Meat grinder engine TLF

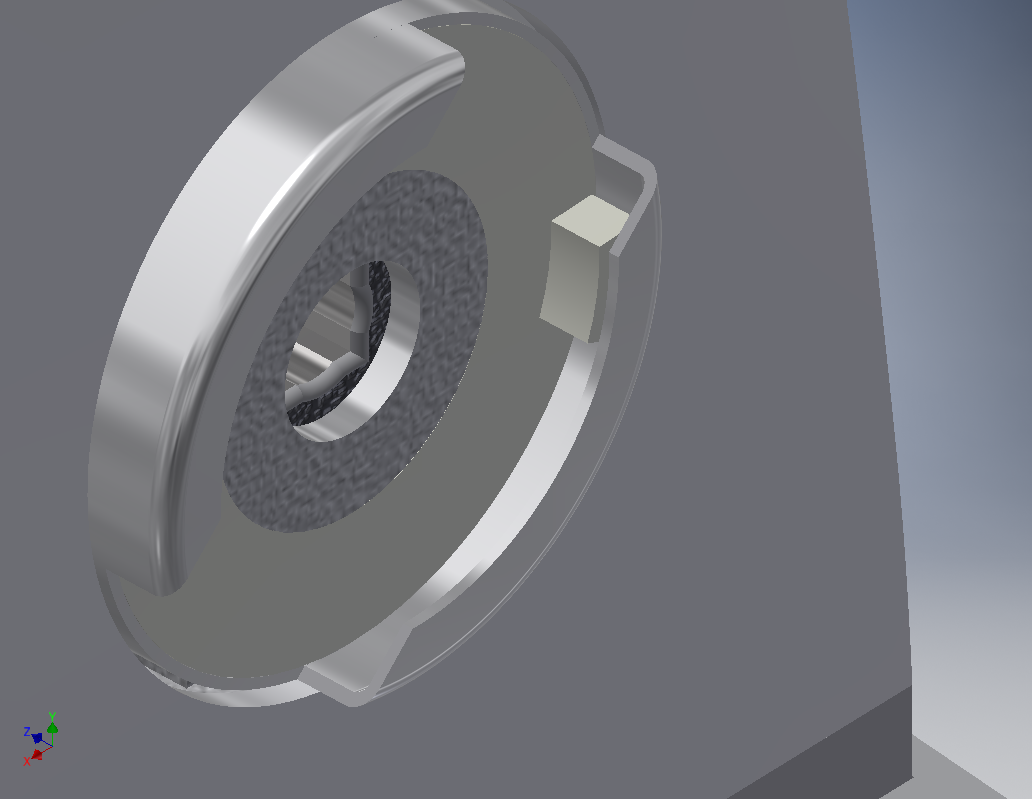

Meat grinder tube connector

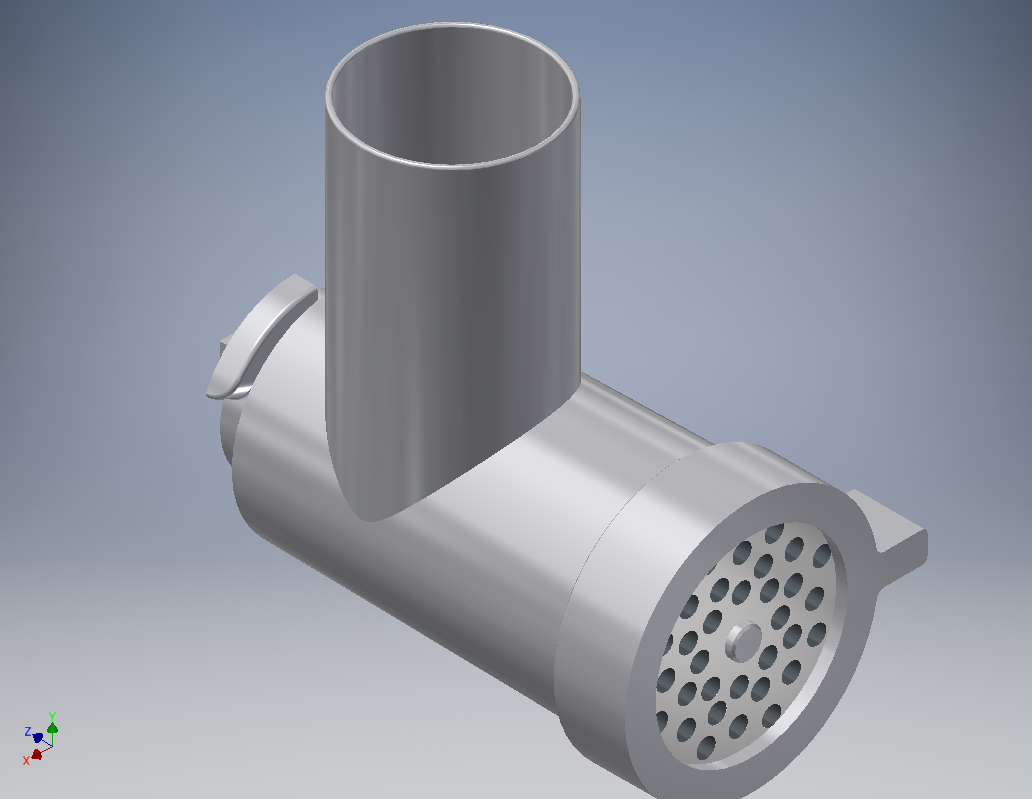

Meat grinder tube TLF

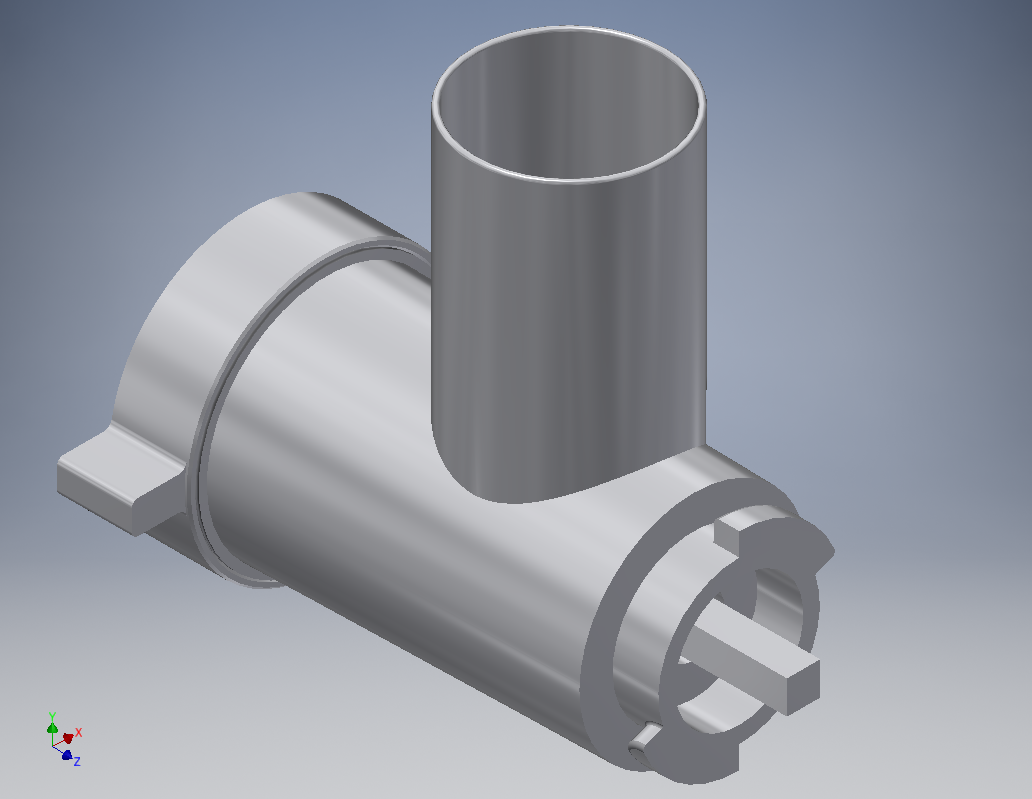

Meat grinder tube TRB

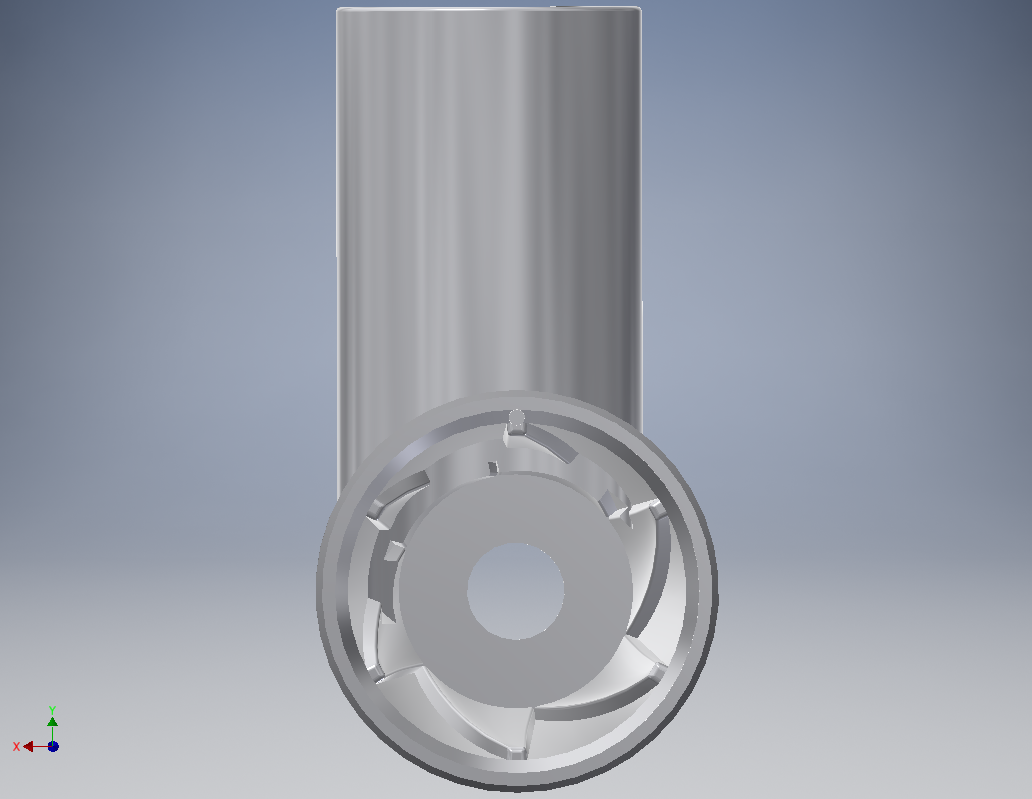

Meat grinder tube AF

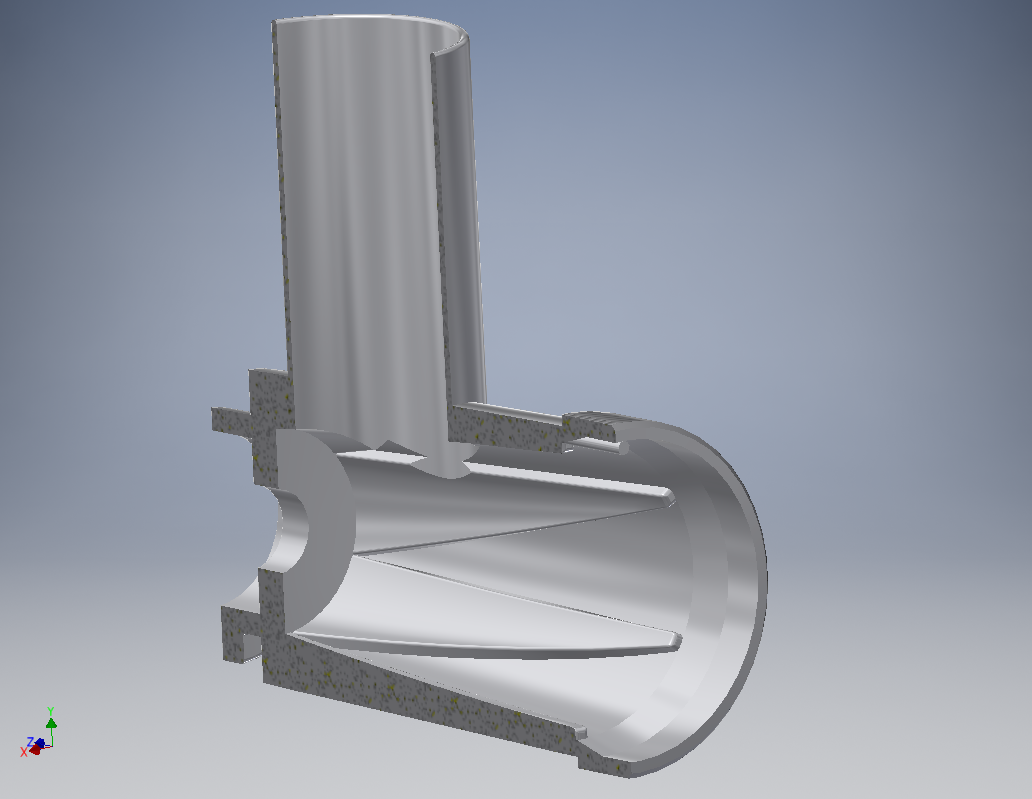

Meat grinder tube half

Meat grinder tube inside

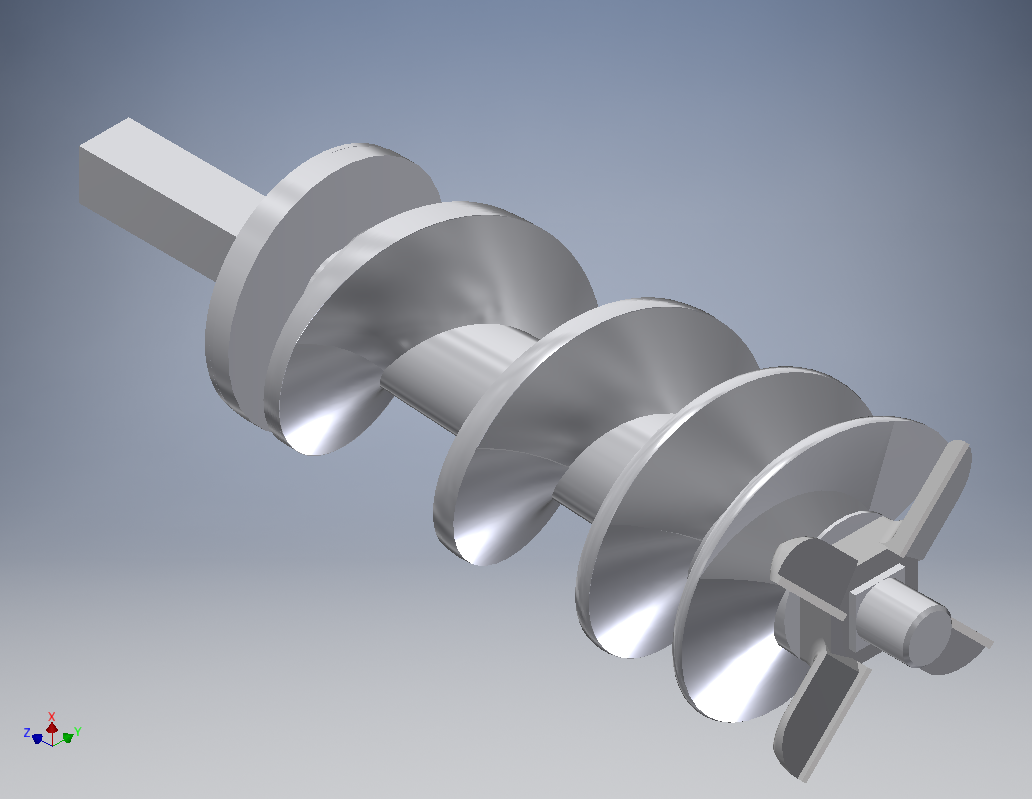

Meat grinder conveyor

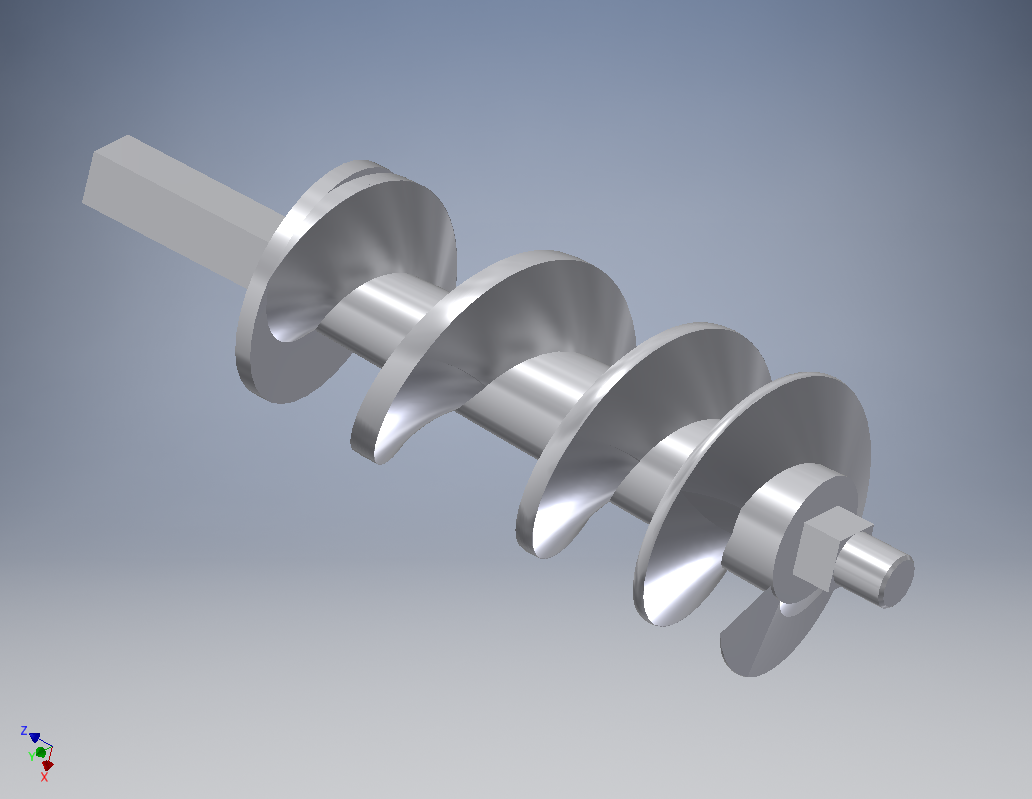

Meat grinder conveyor screw

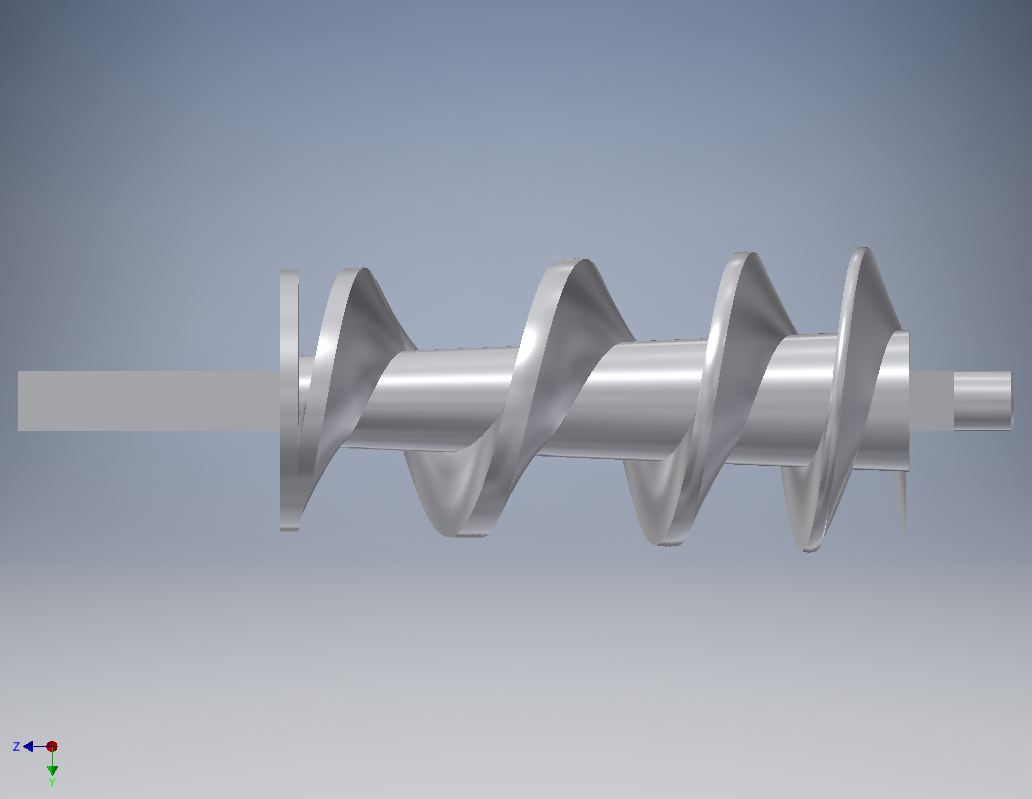

Meat grinder conveyor screw side

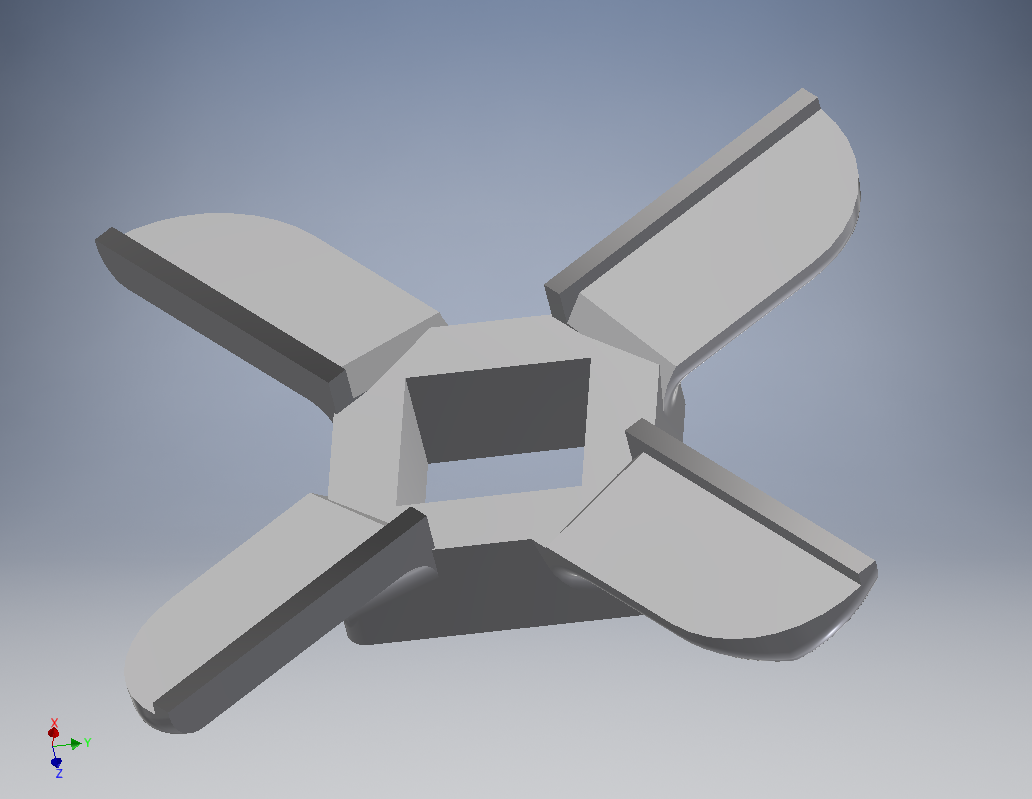

Meat grinder knife front

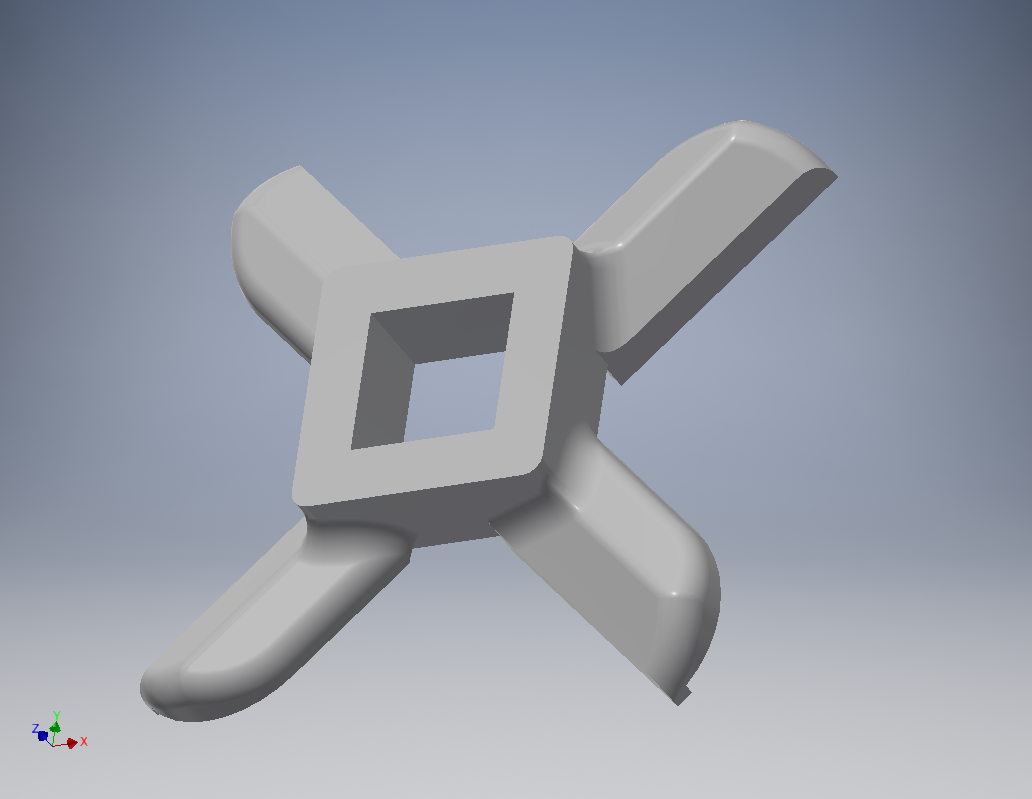

Meat grinder knife back
